In an age dominated by GPS, digital displays, and sophisticated avionics, it might surprise you to learn that many pilots still rely on one of the oldest navigation tools in existence: the magnetic compass. Despite technological advances, the humble magnetic compass remains an essential instrument in cockpits worldwide.

Here, we’ll explore how the magnetic compass works, why it’s so essential to safe flight, and how it fits into a broader system of flight instruments.

The Basics of the Magnetic Compass

The magnetic compass is a simple yet ingenious device that uses a magnetized needle to align itself with the Earth’s magnetic field. The needle floats freely in a compass bowl, often filled with liquid (making it a liquid compass), allowing it to move smoothly and point toward magnetic north. The compass is mounted with a gimbal to remain level regardless of the aircraft’s movement.

Around the needle is a compass card or card compass marked with the cardinal points (north, south, east, and west) as well as intermediate directions. This is often referred to as the compass rose. When a pilot reads the compass, they determine their compass bearing or magnetic heading relative to magnetic north.

Historical Origins and Evolution

The invention of the compass dates back to the 15th century, though the principles were known to earlier civilizations, such as the Greeks and Chinese. Early compasses often involved suspending a lodestone—a naturally magnetized mineral—in a bowl of water, allowing it to rotate freely and indicate direction. These early compasses revolutionized marine navigation, guiding explorers and mariners through uncharted waters.

Modern aircraft compasses are far more refined but are based on the same fundamental principles. While GPS and gyroscopes provide precise navigation, the magnetic compass is a dependable, independent backup.

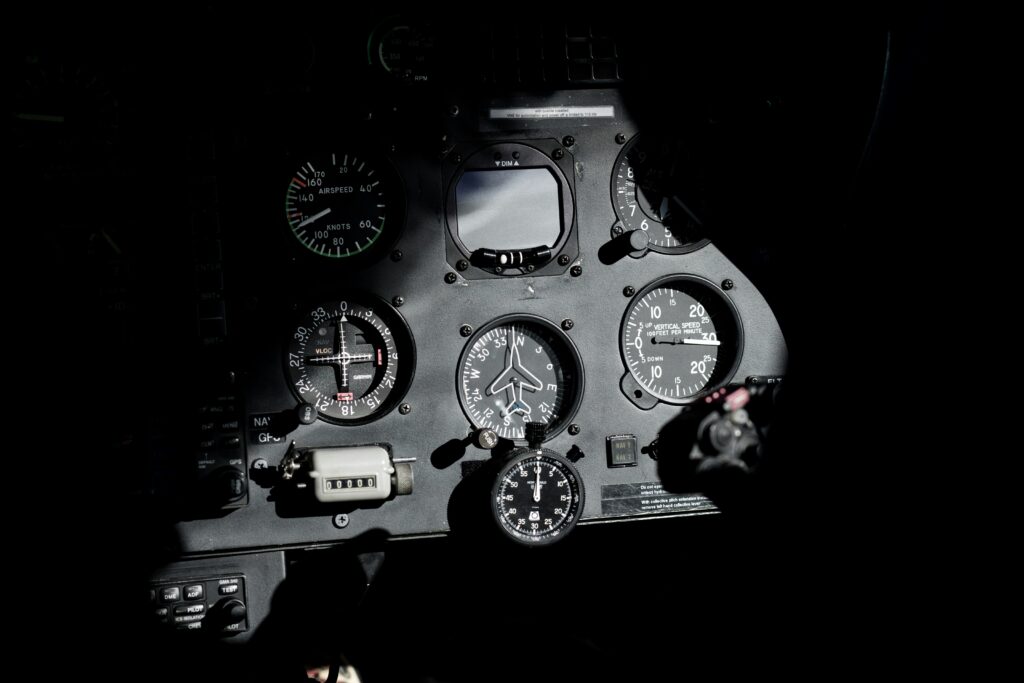

cockpit controls

Understanding Magnetic Declination and True North

One challenge in using a magnetic compass is that magnetic north does not perfectly align with true north (the geographic north pole). This discrepancy, known as magnetic declination or declination, varies by location and time due to shifts in the Earth’s magnetic field.

Pilots must adjust their compass readings to account for this declination to ensure accurate navigation. In some regions, particularly the northern hemisphere, oscillations in the magnetic field can cause the compass needle to fluctuate, which pilots learn to interpret.

Why Pilots Trust the Magnetic Compass

Reliability and Independence

Unlike GPS systems that rely on satellites or electronic instruments that depend on aircraft power, the magnetic compass is completely self-contained. Its simplicity means it cannot be hacked, lose signal, or experience software malfunctions. This type of compass acts as a fail-safe during electrical failures or electronic interference.

Complement to Advanced Avionics

Modern aircraft are equipped with gyroscopic instruments, magnetometers, and advanced digital navigation aids, but none completely replace the magnetic compass. The magnetic compass provides an absolute directional reference, even when other systems are compromised. Pilots often cross-check compass readings against other instruments to verify their heading.

Ease of Use

The magnetic compass offers a straightforward and intuitive method of finding direction. With a clear lubber line indicating the aircraft’s nose direction, and the points of the compass marked clearly on the card compass, pilots can quickly interpret their heading.

Challenges and Limitations

While indispensable, the magnetic compass is not without drawbacks. It is susceptible to errors caused by aircraft magnetism, acceleration, or banking turns. These errors require pilots to understand how to interpret the compass correctly during different flight conditions.

Additionally, the compass reflects magnetic north, which differs from true north, so pilots must factor in magnetic declination when planning routes. Modern training ensures aviators know these adjustments intimately.

The Magnetic Compass in Flight Training and Navigation

The magnetic compass remains a core tool in pilot training, teaching fundamentals of orientation and navigation. It is often the first navigation instrument new aviators learn to read. Even in advanced aircraft with sophisticated systems, pilots regularly practice flying solely by compass and dead reckoning.

In activities like orienteering—a navigation sport relying on map and compass—the skills honed complement a pilot’s spatial awareness and navigation abilities. Understanding the magnetic compass’s workings enhances a pilot’s overall situational awareness, making it a vital skill even in the digital era.

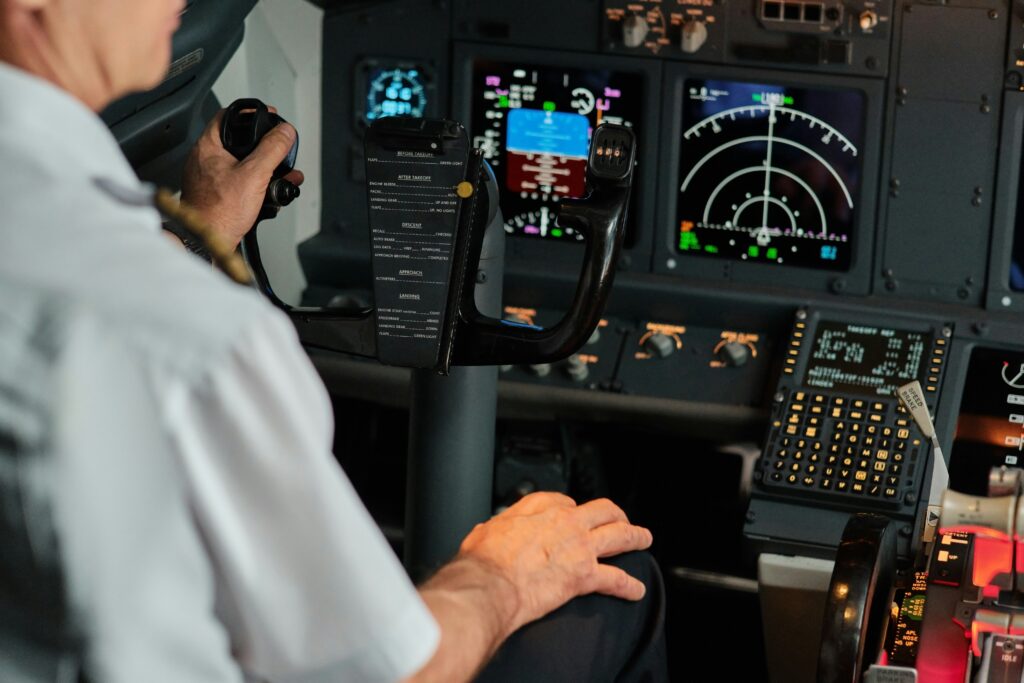

two pilots looking at the cockpit controls

Modern Adaptations: The Liquid Compass and Compass Card

Today’s aviation compasses often utilize a liquid compass design, where the compass card is immersed in fluid to dampen needle oscillations and improve readability. The card is carefully balanced to float horizontally in the compass bowl and is mounted on a gimbal to stay level regardless of aircraft attitude.

The magnetized needle or card aligns with the Earth’s magnetic field, allowing the pilot to read the current heading at a glance. These designs have evolved from the basic mariner’s compass, refining accuracy and ease of use for aviation-specific needs.

Timeless Technology in a Modern Cockpit

Despite the rapid advancement of avionics, satellite navigation, and inertial guidance systems, the magnetic compass remains a cornerstone of aviation. Its simplicity, reliability, and independence from electrical power make it an indispensable backup and a fundamental training tool.

Whether in small general aviation aircraft or larger commercial planes, the magnetic compass continues to guide pilots safely through the skies. Understanding how this device interacts with the Earth’s magnetic field and compensates for variations like magnetic declination is key to mastering navigation.

As aviation technology advances, the magnetic compass endures as a testament to the power of basic scientific principles applied to practical needs—a true pilot’s trusted companion since the 15th century and beyond.

As cockpit technology continues to evolve, do you think the magnetic compass will remain a vital backup for pilots, or will even this time-tested tool eventually be phased out in favor of fully digital systems? Dive into discussions like this on The Aviation Co., a space for aviation lovers, frequent flyers, and pros to connect.

Key Takeaways

  • Magnetic compass is a reliable backup: Provides a dependable reference if other navigation instruments fail.
  • Works without power: Fully self-contained and independent of electricity or GPS.
  • Still FAA mandated: Required in every cockpit as a core navigation tool.
  • Essential for pilot training: Teaches fundamental navigation and situational awareness.
